Table-Top Double Clipper BCS-200DC-R

The pivoted CLIP SYSTEM BCS-200DC-R table-top double clipper is a reliable device for fastening plastic and natural casings in a calibre range of 25 to 120 mm (0.98 - 3.94 inch). The clipper is easily operated, quick to set up and saves space. It is especially suitable for manufacturing ring shaped sausage products and for packing in nets.
​

• Automatically cuts portions to size
• Moveable casing brake
• Upgradable to semi-automatic operation through the addition of modular components

Pivotable 60°/90°

​The clipper is pivotable for easier loading of the filling tube. It can then be locked back into the pre-set operating position.

CLIPS: XE-CBA-SERIES

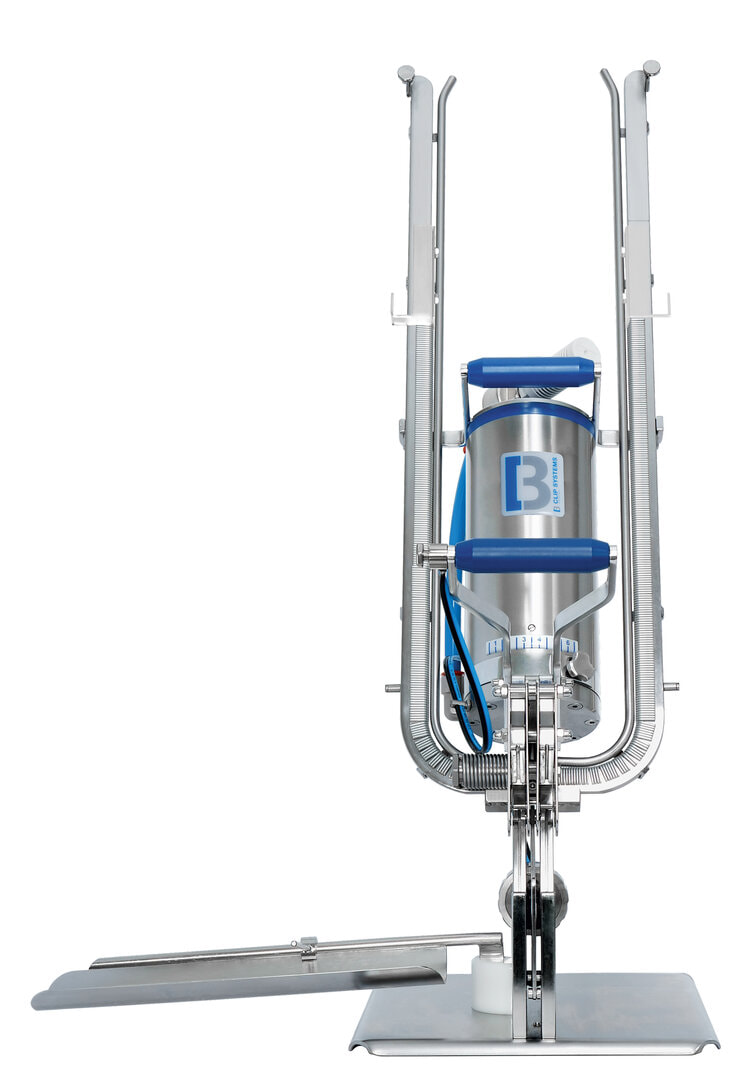

Table-Top Double Clipper BCS-200DC

The CLIP SYSTEMS BCS-200DC table-top double clipper is a reliable device for closing plastic and natural casings in a caliber range from 25 to 100 mm. Space-saving, easy to operate and quick to set up - this is how our table-top double clipper presents itself. This makes it ideal for the production of ring shaped sausage  and for packaging in nets.

• Automatically cuts portions to size
• Hygienic thanks to rustproof stainless steel cylinder
• Versatile since the clipper handles 5 clip dimensions
• Upgradable to semi-automatic operation through the addtion of modular components

CLIPS: XE-CBA-SERIES

Height                     850 mm | 33.46"
Width                      600 mm | 23.62"
Depth                      630 mm | 24.8"
Weight                      19.5 kg | 42.99 lbs
Capacity                    2 x 350
Calibre                    25 - 100 mm | 0.98 - 3.94"
Pressure                 6 bar | 87 psi
Operating mode     Manual
Air consumption per stroke    4.2 l | 6 bar (0.62 MPa) | 87 psi
