Smokehouses

Commercial smokehouses, ovens, steam cabinets

- our cooking, smoking, defrosting and rapid cooling systems have been delivering the highest yield in the food industry.
- we turned the clock decades forward in achieving the best smoke flavor and color in a shortest possible smoking cycle time.

iMax 1000 touch screen smokehouse microprocessor

SCOTT Smokehouses - we out-smoke the competition


WITH VERTICAL , HORIZONTAL AND COMBINATION (CYCLONIC) AIRFLOW:

Air flow controlled by a single turbine per cage

The standard variable speed turbine motor ensures high velocity air flow in each chamber.

The Steam Generating System:​​

• The built-in steam generating system in one of the most unique features of the SCOTT smoke house. Fine spraying nozzles atomize the water, drawn from the hot water connection, directly into the turbines, which turn the little droplets into a fine mist. This mist evaporates before reaching the heat source. The detrimental effect of cold water hitting the hot elements, for instance, is avoided.

           The Construction:

• The best insulation level in the industry is achieved by standard 10 mm thicker insulation material than any other unit on the market. The drain  runs out to front into site-specific drain - automatic open/closed position. No sharp corners or edges inside the chambers. Double-insulated door with standard glass window on very heavy-duty, structurally supported hinges - they last. No-drip ceiling.

           Other Features:

• Fully automatic shower - standard, used for showering and cleaning.
• Fully automatic cleaning system - standard - that cleans not only the chambers but all pipes, smoke generator and other hard-to-reach spots.
• Optional external cooling system for cold smoking.
• Fully automatic humidity control.
• Fully automatic temperature and core temperature control.
• The possibilities are endless - Drying, Smoking hot/cold, Dry or steam Cooking, Roasting, Fermenting  and Baking. (up to 110º C, beyond, ask for our Ovens)

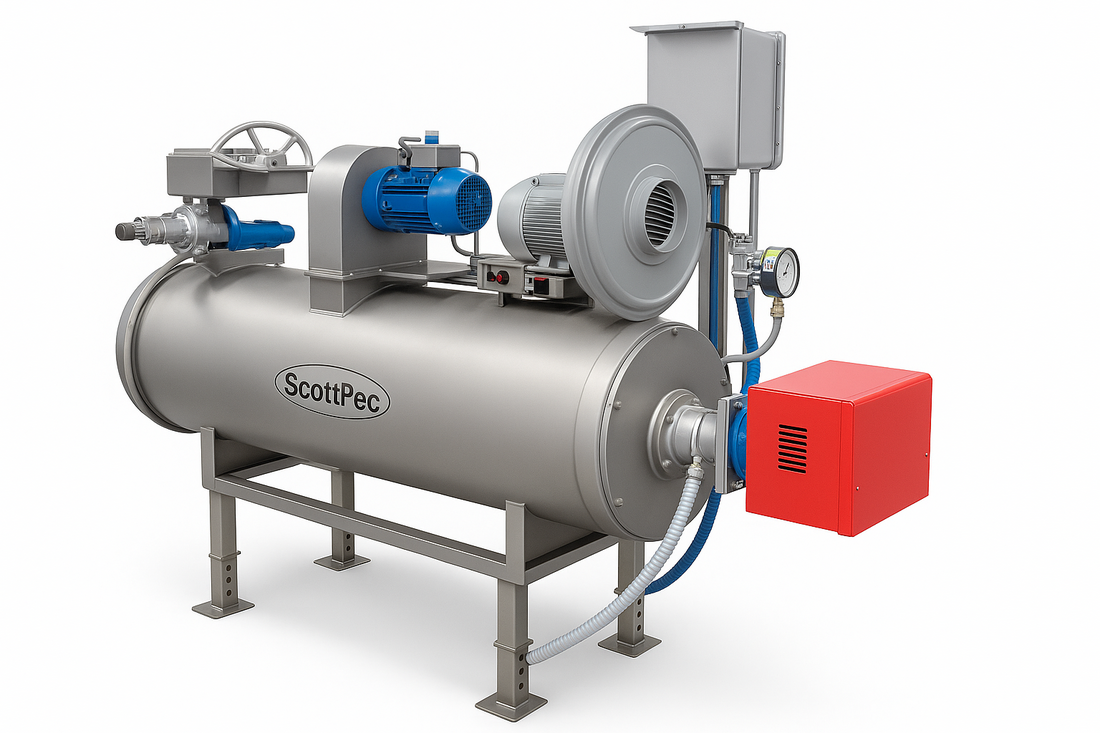

  The optional afterburner:



• Efficient elimination of the smoke emission to the atmosphere. It could be used in all types of smoking installations already existing on the market. Its unique construction allows to preheat water for farther use.

           Microprocessor Controller

• Simple - Effective - Informative - Reliable
• Displays programmed values and actual values of:
• Programs - 100 separate production programs.
• Steps within programs.
• Chamber temperature.
• Core temperature.
• Humidity level.
• Programmed step time and step time elapsed.
• Displays via LED each active processing function and step. Controls smoke generator and refrigeration compressor.
• Pre-programmed, forced cleaning process according to your needs.
• Adapts to your circumstances and learns - automatically uses sub-programs to all steps.
• Optional automatic process recording either via PC or via recorder.

  THE SMOKE GENERATOR



• Powerful - Reliable - Healthy - Safe
• Completely Stainless Steel.
• Automatic mixer for feed.
• Fire extinguisher controlled by the Smoke House Computer.
• Smoke temperature monitoring.
• Air regulator for smoke intensity.
• Temperature of smoke generation prevents the release of benzopyrenes.

ScottPec, Inc. - The only smokehouse manufacturing company worldwide offering three different airflows, vertical, horizontal and combination (Cyclonic)
