MADO Automatic Grinders

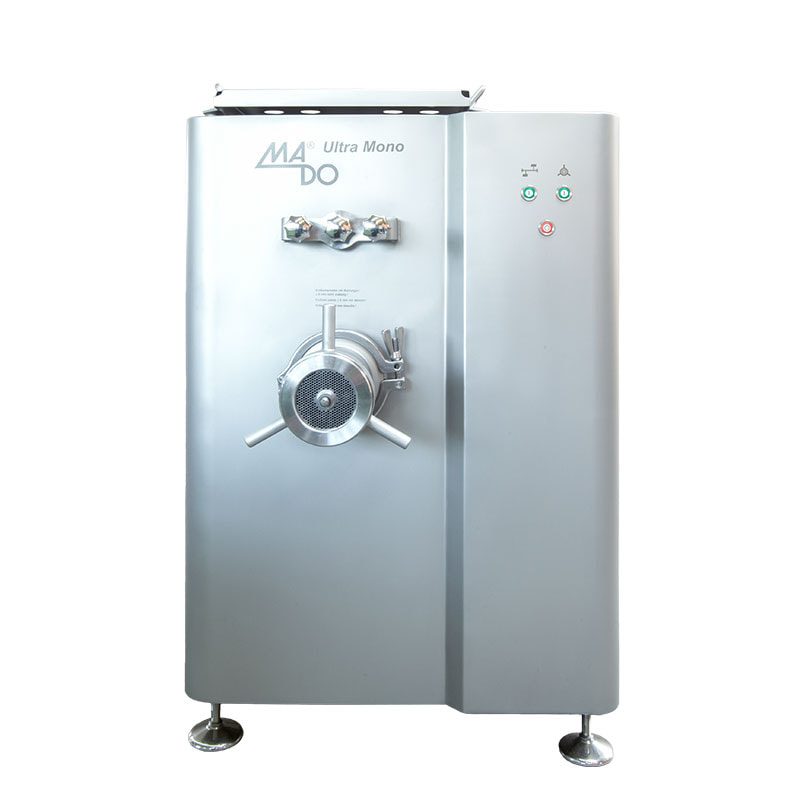

MEW 721-B98/E32 Automatic Mixer Grinder
​Complete with mixing arm, cutting set either 5-pcs. Unger B98 with sickle ring knives, stainless steel disks and 2 spacer rings or cutting set either 2-pcs. Enterprise size 32 SUPERLONGLIFE with knife and 3 mm disk.
Processing worm made of stainless steel and POM (plastic).
The MEW 721 is optional available with cooling system.
The machine is completely made of stainless steel.
  • Is equipped with a central mixing arm with 4 different mixing profiles
  • Complete stainless steel worm on request without extra charge.
  • For difficult applications, a reinforced motor is available.
  • Frozen material can be processed effortlessly.
  • Hygienic, simple cleaning because of optimal cleanability.
  • Is available with separating system for bones and sinews.
Technical data:
  • Output per hour: approx. 1200 kg
  • Hopper volume: 70 litres
  • Machine height (WxDxH): 830 x 1070 x 1150 mm
  • Weight: approx. 325 kg

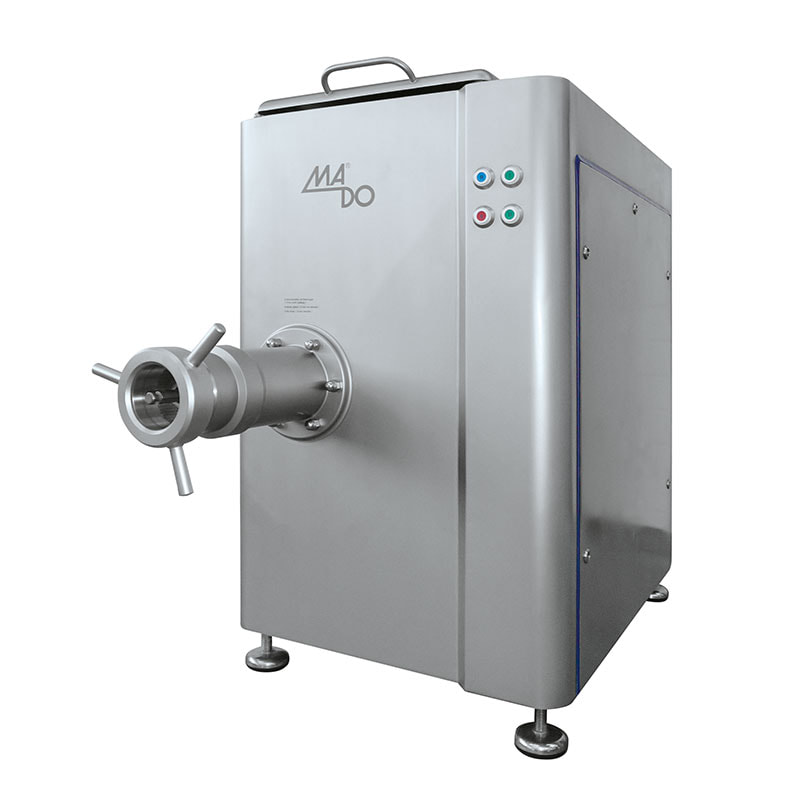

MEW 722 E130 Automatic Grinder
​Complete with cutting set 5-pcs. Unger E 130 with sickle ring knives, stainless steel disks and 2 spacer rings.
Processing worm made of stainless steel. For a surcharge a split steel/POM processing worm is available.
The machine is completely made of stainless steel.
  • Is available with separating system for bones and sinews.
  • Strong motor 7,0/11,0 kW inside.
  • The MEW 722 processes big pieces (e.g. complete pork shoulders) or chilled material without any problems.
  • Strong feeding edge inside the hopper.
  • Hygienic, simple cleaning because of optimal clean ability.
  • 2 speeds for the processing worm
  • Reverse gear.
  • Rinsing chamber.
  • Optional cutting set Unger G 160 available.
Technical data:
  • Output per hour: approx. 2.000 – 3.000 kg (depending to the raw material)
  • Hopper volume: approx. 160 liter
 MEW 722 M E130 Automatic Mixer Grinder
​In standard version with mixing device to fold in spices or mix different meat pieces available.
Complete with cutting set 5-pcs. Unger E 130 with sickle ring knives, stainless steel disks and 2 spacer rings.
Processing worm made of stainless steel. For a surcharge a split steel/POM processing worm is available.
The machine is completely made of stainless steel.
  • Is available with separating system for bones and sinews.
  • Strong motor 7,0/11,0 kW inside.
  • The MEW 722 processes big pieces (e.g. complete pork shoulders) or chilled material without any problems.
  • Strong feeding edge inside the hopper.
  • Hygienic, simple cleaning because of optimal clean ability.
  • 2 speeds for the processing worm
  • Reverse gear.· Rinsing chamber.
  • Optional cutting set Unger G 160 available.
Technical data:
  • Output per hour: approx. 2.000 – 3.000 kg (depending to the raw material)
  • Hopper volume: approx. 160 liter
​MEW 722 M HKV Automatic Grinder

In standard version with mixing device to fold in spices or mix different meat pieces available.
Equipped with a hopper attachment and hydraulic loading device for loading carriage of 200 l for easier way of loading.
Complete with cutting set 5-pcs. Unger E 130 with sickle ring knives, stainless steel disks and 2 spacer rings.
Processing worm made of stainless steel. For a surcharge a split steel/POM processing worm is available.
The machine is completely made of stainless steel.
  • Is available with separating system for bones and sinews.
  • Strong motor 7,0/11,0 kW inside.
  • The MEW 722 processes big pieces (e.g. complete pork shoulders) or chilled material without any problems.
  • Strong feeding edge inside the hopper.
  • Hygienic, simple cleaning because of optimal clean ability.
  • 2 speeds for the processing worm
  • Reverse gear.
  • Rinsing chamber.
  • Optional cutting set Unger G 160 available.
Technical data:
  • Output per hour: approx. 2.000 – 3.000 kg (depending to the raw material)
  • Hopper volume: approx. 300 liter

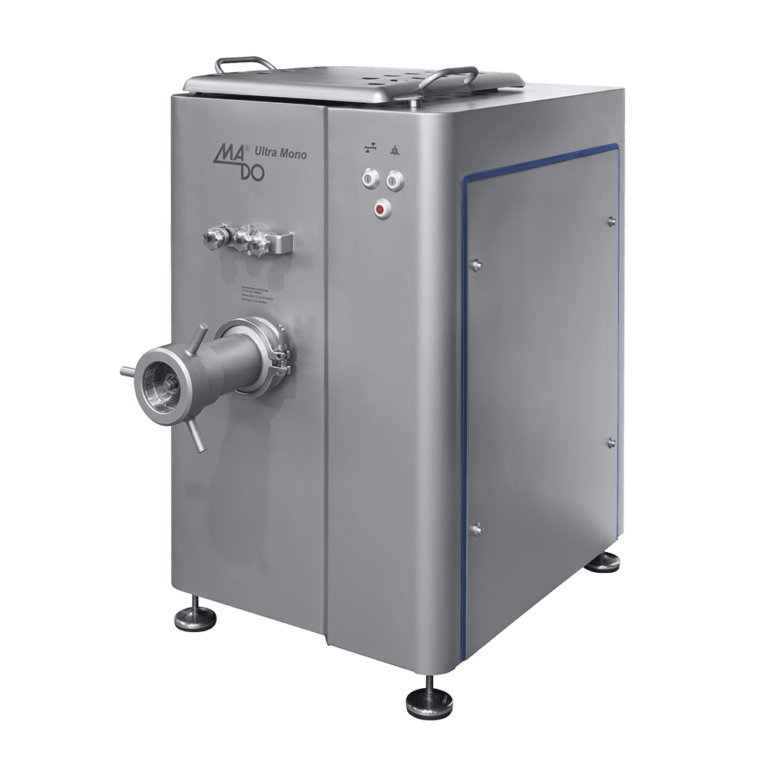

MEW 723-B98/E32 Automatic Mixer Grinder
​Complete with mixing arm, cutting set either 5-pcs. Unger B98 with sickle ring knives, stainless steel disks and 2 spacer rings or cutting set either 2-pcs. Enterprise size 32 SUPERLONGLIFE with knife and 3 mm disk. Processing worm made of stainless steel and POM (plastic).
The machine is completely made of stainless steel.
The MEW 723 is optional available with cooling system.
  • Is equipped with a central mixing arm with 4 different mixing profiles.
  • Complete stainless steel worm on request without extra charge.
  • For difficult applications, a reinforced motor is available.
  • Processes big pieces without any problems.
  • Frozen material can be processed effortlessly.
  • Hygienic, simple cleaning because of optimal cleanability.
  • Optionally available with cutting set size Unger D114 / E130.
  • Optionally available with cutting set size Enterprise E52.
  • Is available with separating system for bones and sinews.
Technical data:
  • Output per hour: approx. 1600 kg
  • Hopper volume: 120 litres
  • Machine height (WxDxH): 830 x 1220 x 1250 mm
  • Weight: approx. 370 kg

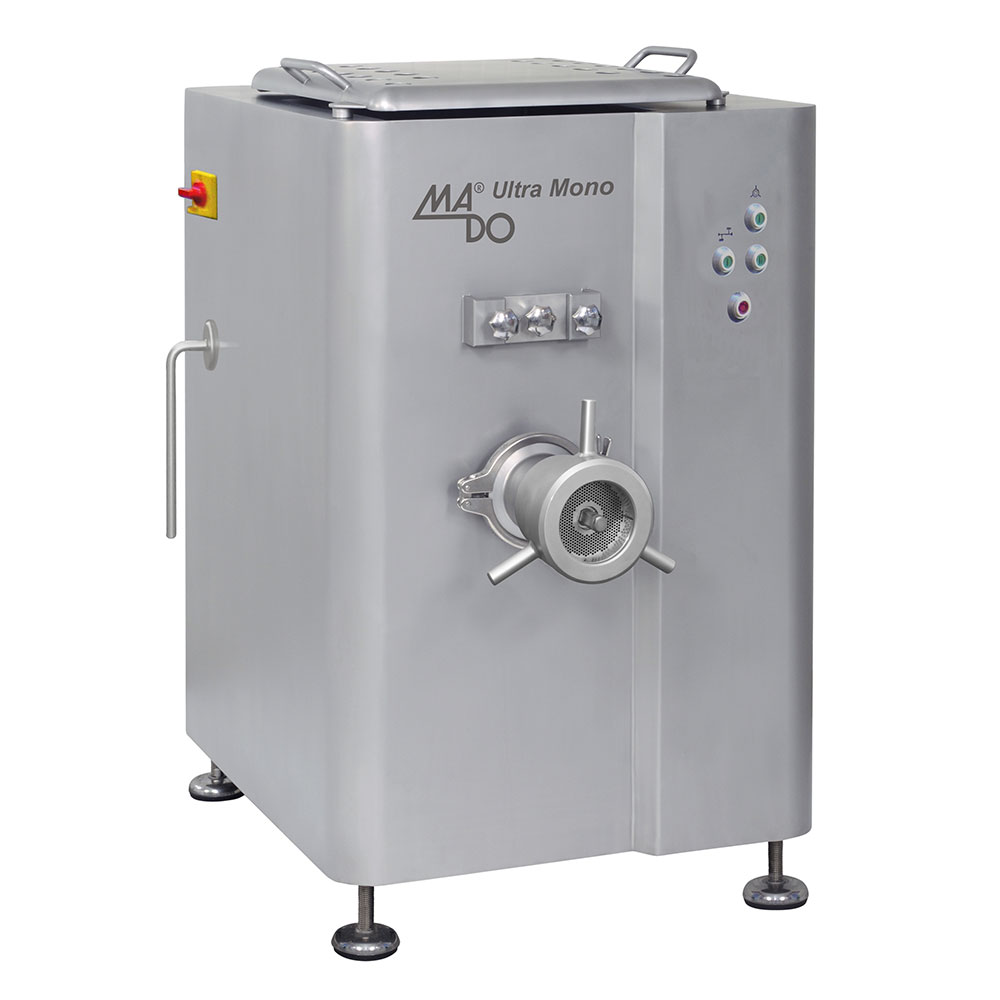

MEW 724-D114/E52 Automatic Mixer Grinder
​Complete with mixing arm, cutting set either 5-pcs. Unger D 114 with sickle ring knives, stainless steel disks and 2 spacer rings or cutting set either 2-pcs. Enterprise size 52 SUPERLONGLIFE with knife and 3 mm disk. Processing worm made of stainless steel and POM (plastic).
The machine is completely made of stainless steel.
  • The MEW 724-114/52 is equipped with a central mixing arm with 4 different mixing profiles.
  • Complete stainless steel worm on request without extra charge.
  • For difficult applications, a reinforced motor is available.
  • Processes big pieces without any problems.
  • Frozen material can be processed effortlessly.
  • Hygienic, simple cleaning because of optimal cleanability.
  • Optionally available with cutting set size Unger E130.
  • The machine is available with separating system for bones and sinews.
Technical data:
  • Output per hour: approx. 1600 – 2200 kg (depending on raw material).
  • Hopper volume: approx.120 litres
  • Machine height (WxDxH): 830 x 1220 x 1250 mm
  • Weight: approx. 370 kg
