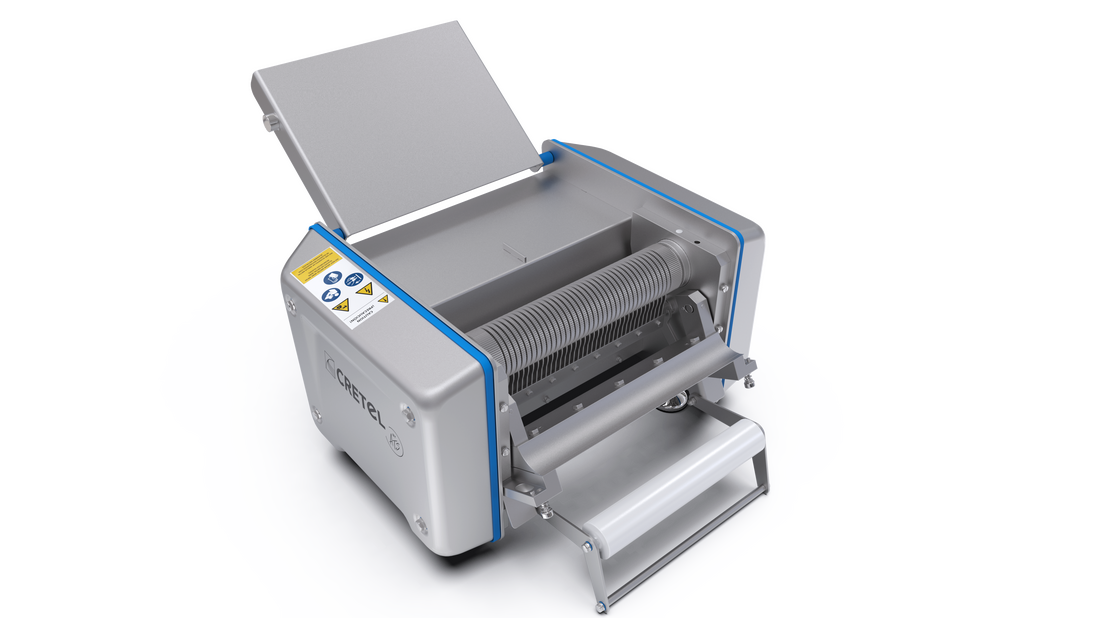

Fish Skinning Machine Series 362


Description :Series 362 are compact table top models, designed for efficient and fast skinning of a wide range of fishes. The unique blade system technology is based on a 35 years experience. These versatile units are in operation worldwide and appreciated for their ease of use, reliability, and long life span.

• Compact with hand grips, easy to move
• Solid stainless steel construction for maximum hygiene and durability
• Water spray system with adjustable volume
• Grease nipples for bearing system
• Full welded construction to prevent dirt and moisture from penetrating inside the cabinet
• Safe 24 low voltage foot switch
• Permanent cleaning of primary roller by built-in comb system

Models:

• 362F_ Blunt blade holding beam

For skinning of a variety of fish species, either whole or filleted such as Cod, Flounder, Halibut, Ling, Mackerel, Plaice, Ray, Sole, Skate, Turbot and others.

• 362S_ Blade holding sharped (with blade)

For skinning of all kinds of fish fillets such as Bream, Carp, Grouper, Mahi-Mahi, Perch, Pike, Salmon, Snapper, Squid, Tilapia and others.
Cleaning Roller

Options:

L - Strippers: separated fingers to clean the toothed roller
K - Comb: single piece with fixed fingers to clean the toothed roller

​
 Options:

* Others voltages available
* Extra water tube
* Different toothed rollers
* Deep skin version
* Guide plate
* Press roller
* Different comb systems

Accessories :

* Stainless steel trolley
* Stainless steel trolley with skin collector

TECHNICAL DATA

Capacity                              20 - 40 pcs/min
Skinning                              Width360 mm
Weight                                 62 Kg
Motor                                  110 VAC or 3x220 VAC  60 Hz / 0.75 kW
Dimensions (mm)              590 x 400 x 340 (L x W x H)

Fish Skinning Machine Series 365

Series 365 are compact free-standing skinning units with manual infeed for all industrial applications.

• On castors, height adjustable for maximum mobility and extra safety.
• Solid construction from stainless materials for maximum lifetime
• Stainless “Star”-cleaning roller with forward and reverse rotation c/w water spray nozzles with adjustable volume -for maximum reliability.
• Bearings with double collar bushing for maximum lifetime and low cost of operation.
• Water spray system with adjustable volume to spray roller, blade and infeed tray.
• Auto shut water valve activated by foot switch to minimize water consumption.
• All electrical parts are in a splash proof housing.
• All joints and seams are completely welded to avoid penetration of moisture and dirt.
• Safe 24 Volt foot switch with special "lift flex' cable
• Conform to latest CE directives

Models:

• 365F - With blunt blade holding beam shoe

For the perfect skinning of all kinds of whole flat fish such as: sole, flounder, plaice, halibut, turbot, monkfish, skate; as well as filets of herring, cod, saithe, hake, pollack, stock fish, mackerel, bream, grey gurnard, trout, salmon, etc.

• 365S - With blade holding sharped shoe (with blade)

For skinning all kind of filets such as: all kinds of perch, pike, tilapia, carp, bream, croaker, snapper, grouper, catfish, sturgeon, etc.

• 365C Blunt & Blade holding shoe (kombi)

Perfect combination of both skinning shoes (Blunt + Blade) for all above applications.
Options :* Others voltages available
* Deep skin version
* Mechanical foot switch
Accessories:* Safety skinning blade cover
TECHNICAL DATA

Capacity                                        20 - 50 pcs/min
Skinning Width                             360 mm
Weight                                           90 Kg
Motor                                            110 VAC  or    3x220 VAC  60 Hz / 0.75 kW
Dimensions (mm)                        520 x 450 x 950 (L x W x H)

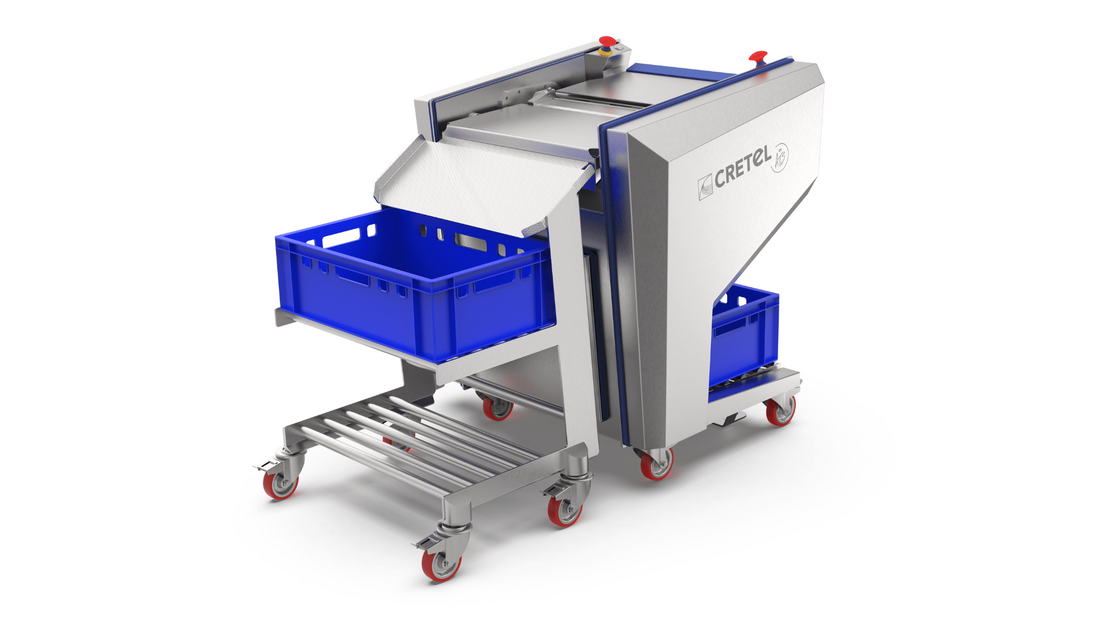

Industrial Fish Skinning Machine Model 460VH

Series 460 are designed for intensive industrial use. The model 460VH is conceived to process fish continuously at high speed with the best possible yield. The enhanced sanitation, the reduced maintenance and operation costs and the optimized ergonomics make the 460VH an outstanding piece of equipment.

• Full stainless steel construction. Free standing on castors.
• Extra wide 460mm (18 inch) skinning shoe.
• Hygienic and ergonomic design with rounded corners.
• Double bearing system for consistent skinning result.
• Built-ion water spray system with adjustable volume and auto-shut valve to minimize water consumption.
• All electrical parts in splash proof housing.
• All joints and seams are completely welded to avoid penetration of moisture and dirt.
• No tools required to assemble/disassemble the skinning shoe.
• No tools required to change the skinning blade.
• Easy and fast access to all electrical and mechanical parts.
• Vandal proof switches and auto-cut safety switches.
• Delivered complete with set of spare blades.
• Conform to latest CE directives.

Users:

• Fishmongers
• Fish Processors
• Processors of salmon, tilapia, pangasius

Applications:
Precision removal of skin from most species of fish, including Nile perch, skate wings, monkfish, freshwater catfish, squid and cuttlefish, dogfish, shark, fresh and smoked salmon, tilapia, flounder, plaice and other flatfish, whiting, cod, haddock, and other whitefish..
Options:

• Variety of toothed rollers to suit various applications
• Reduced roller speed
• Various voltages
• Unit with lower working height
• Mechanical foot switch

Accessories :

• Infeed table for fast and easy supply of fish to skinning system.
• Storage infeed bin to facilitate the supply of small size fish (such as pout, whiting), cuttlefish, scallops, ....

TECHNICAL DATA

Capacity                                  40 - 150 pcs/min
Skinning                                  Width460 mm
Weight                                    195 Kg
Motor                                      3x220 VAC 60 Hz / 1.1kW
Dimensions (mm)                 770 x 800 x 1010 (L x W x H)

Industrial Fish Skinning Machine Model 460T

Series 460 are designed for intensive industrial use. The model 460T is conceived to process fish continuously at high speed with the best possible yield. The enhanced sanitation, the reduced maintenance and operation costs and the optimized ergonomics make the 460T an outstanding piece of equipment. This model excels in safety through a press roller system, mounted on top of the machine. The system also provides a perfect catching of the filet.

• Full stainless steel construction. Free standing on castors.
• Extra wide 460mm (18 inch) skinning shoe.
• Hygienic and ergonomic design with rounded corners.
• Double bearing system for consistent skinning result.
• Built-in water spray system with adjustable volume and auto-shut valve to minimize water consumption.
• All electrical parts in splash proof housing.
• All joints and seams are completely welded to avoid penetration of moisture and dirt.
• No tools required to assemble/disassemble the skinning shoe.
• No tools required to change the skinning blade.
• Easy and fast access to all electrical and mechanical parts
• Vandal proof switches and auto-cut safety switches.
• Delivered complete with set of spare blades.
• Not available for the European market.

Users:

• Fishmongers
• Fish Processors
• Processors of salmon, tilapia,

Applications:
Precision removal of skin from most species of fish, including Nile perch, skate wings, monkfish, freshwater catfish, squid and cuttlefish, dogfish, shark, fresh and smoked salmon, tilapia, flounder, plaice and other flatfish, whiting, cod, haddock, and other whitefish.
​
Options:

• Variety of toothed rollers to suit various application
• Various voltages.
• Various Press top roller press systems for delicate kind of fish or deep-skin applications.

TECHNICAL DATA

Capacity                                       40 - 80 pcs/min
Skinning                                       Width460 mm
Weight                                          175 Kg
Motor                                            3x220 VAC  60 Hz / 1.1 kW
Dimensions (mm)                        705 x 710 x 950 (W x L x H)

Fully Automatic Fish Skinning Machine Model 460TAC

Series 460 are designed for intensive industrial use. The conveyorized model 460TAC is conceived for the automatic skinning of a wide variety of fish. For individual operation or integrated into processing lines. Highest yield, autonomy, safety and user convenience : the key concepts of this high-performance machine, adjustable to precision to satisfy the most demanding users.

• Safe automatic operation with infeed and discharge belts.
• Hygienic and ergonomic design with rounded corners.
• Adjustable press roller system to secure a perfect grip.
• Double bearing system for a consistent skinning result.
• Built-in water spray system with adjustable volume and auto-shut valve to minimize water consumption.
• All electrical parts in splash proof housing.
• All joints and seams are completely welded to avoid penetration of moisture and dirt.
• No tools required to assemble/disassemble the skinning shoe.
• No tools required to change skinning blade.
• All mechanical and electrical components are easily accessible.
• Easy and fast cleaning.
• Vandal proof switches and auto-cut safety switches
• Delivered complete with set of spare blades and parts.

Users :

• Fishmongers
• Fish processing industry

Application:
From flatfish fillets and round fish fillets, from very delicate species such as plaice, flounder, whiting, cod, pollack, sole, catfish, pangasius-basa up to fish species with thick and scaled skin such as tilapia, groupers and snappers, tuna, shark, carp and so many others. Special optional tool available for deep-skin application of salmon, tilapia and others.
​
Options:

• Variety of toothed rollers to suit each application.
• Variety of press roll systems to suit the kind of fish.
• Special deep skin system.
• Available in various voltages.
• Longer infeed- and/or discharge belt.

TECHNICAL DATA


Capacity                           40 - 160 pcs/min
Skinning                           Width460 mm
Weight                              250 Kg
Motor                               3x220 VAC  1.1 kW
Dimensions (mm)          1200 x 810 x 1200 (W x L x H)

F460A
Automatic skinner for all skinning methods

​Automatic skinner for all skinning methods
The redesigned automatic fish skinner allows to skin your fish from silver skin to deep skin with easy and quick adjustments. The new thickness control system and hold down system guarantees a good performance for all types of skinning methods.

When reliability becomes important

Cretel designs and manufactures high quality machines and equipment with a focus on hygiene, durability and efficiency, by delivering goods with the best price quality ratio.
Cretel owes its privileged market position to its ability to develop a standard range of products and tailor-made solutions.

Thickness control

From 0 to 5.5 mm thickness the operator can easily change from silver skin to deep skin method without opening the machine.

Applications
​
For skinning of all kinds of fish fillets such as Alaska Pollak, Bream, Carp, Cod, Catfish, Grouper, Herring, Hake, Mahi mahi, Mackerel, Perch, Pike, Salmon, Snapper, Tilapia and others.
Skinning method: Everything from silver skin to deep skin.

​TECHNICAL DATA
​
Capacity                           40 - 160 pcs/min
Skinning                           Width 460 mm
Weight                              250 Kg
Motor                               3x220 VAC  1.1 kW
Dimensions (mm)          1200 x 810 x 1200 (W x L x H)
